Festo
547088

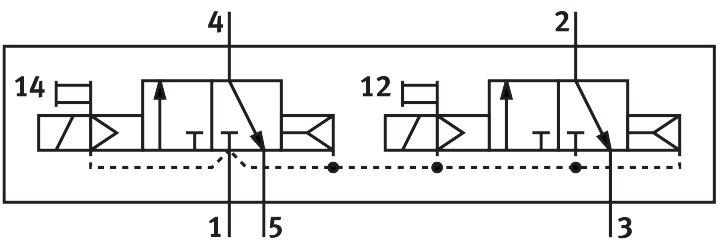

Air solenoid valve VSVA-B-T32C-AH-A1-1AC1
The Festo part number 547088 is a 26 mm electrical industrial component featuring a 2x3/2 closed, monostable valve function and a piston gate valve structural design with soft sealing. It delivers a normal nominal flow rate of 900 l/min at an operating pressure range of 2 bar to 10 bar utilizing a 24V AC operating voltage. Conforming to ISO 15407-1 and VDMA 24563 standards, this piloted unit includes a pneumatic spring reset, non-detenting manual override, internal pilot air supply, and adjustable exhaust air function with an IP65 and NEMA 4 degree of protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547088
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547088.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | Connecting plate size 01 according to VDMA 24563 | G1/4
- Operating voltage
- 24V AC
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1 | VDMA 24563
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1250 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1000 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 900 l/min
- Switching time off
- 28 ms
- On switching time
- 20 ms
