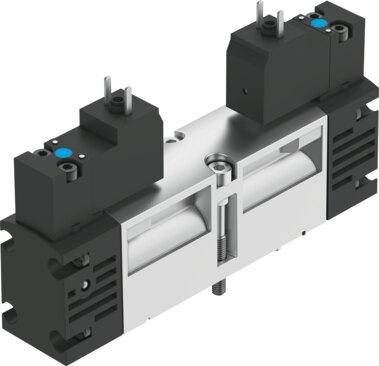

Reference imageConfirm configuration by manufacturer part number.
Festo
547126
Air solenoid valve VSVA-B-P53C-ZH-A1-1AC1
The Festo 547126 is an electrically actuated 5/3-way closed industrial component featuring a 26 mm piston gate valve design and a soft sealing principle with positive overlap. It delivers a normal nominal flow rate of 1000 l/min at an operating pressure range of -0.9 bar to 16 bar and requires a 24V AC operating voltage. Equipped with IP65 and NEMA 4 protection ratings, this unit conforms to ISO 15407-1 and VDMA 24563 standards with sub-base pneumatic working ports and an adjustable exhaust air function. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547126
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547126.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | Connecting plate size 01 according to VDMA 24563 | G1/4
- Operating voltage
- 24V AC
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1 | VDMA 24563
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1400 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1100 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1000 l/min
- Switching time off
- 58 ms
- On switching time
- 23 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 547126. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
