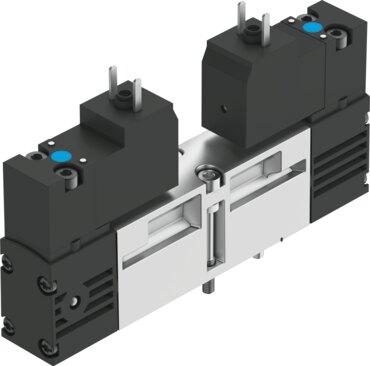

Reference imageConfirm configuration by manufacturer part number.
Festo
547163
Air solenoid valve VSVA-B-P53U-ZH-A2-5C1
Engineered by Festo, part number 547163 is an electrical 5/3-way pressurized piston gate valve featuring an 18 mm valve size, a normalized nominal flow rate of 450 l/min, and an operating voltage of 12V DC. This IP65 and NEMA 4 rated component incorporates a mechanical spring reset, soft sealing principle, adjustable exhaust air function, and a positive overlap lap across an operating pressure range of -0.09 MPa to 1 MPa. It utilizes an external pilot air supply port with piloted control, non-detenting manual override, and supports a reversible flow direction in any mounting position according to ISO 15407-1 and VDMA 24563 standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547163
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547163.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 450 l/min
- Pneumatic working port
- Sub-base, size 18 mm as per ISO 15407-1 | Connecting plate size 02 according to VDMA 24563 | G1/8
- Operating voltage
- 12V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1 | VDMA 24563
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 650 l/min
- Flow rate of pneumatic valve on individual sub-base
- 500 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 450 l/min
- Switching time off
- 30 ms
- On switching time
- 18 ms
