Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

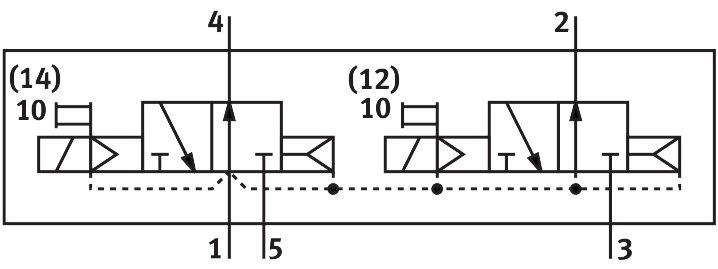

Reference imageConfirm configuration by manufacturer part number.
Festo
547171
Air solenoid valve VSVA-B-T32U-AH-A2-2AC1
The Festo part number 547171 is an 18 mm electrical industrial component featuring a 2x3/2 open monostable valve function and a piston gate valve structural design. It delivers a normal nominal flow rate of 400 l/min at an operating pressure range of 2 bar to 10 bar, driven by a 110V AC operating voltage and internal pilot air supply. Built to ISO 15407-1 and VDMA 24563 standards with an IP65 and NEMA 4 degree of protection, this unit includes adjustable exhaust air function, soft sealing, and a pneumatic spring reset method. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547171
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547171.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- Sub-base, size 18 mm as per ISO 15407-1 | Connecting plate size 02 according to VDMA 24563 | G1/8
- Operating voltage
- 110V AC
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1 | VDMA 24563
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 600 l/min
- Flow rate of pneumatic valve on individual sub-base
- 450 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 400 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 547171. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
