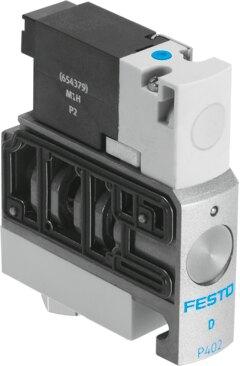

Reference imageConfirm configuration by manufacturer part number.
Festo
547379
Air solenoid valve CPVSC1-M5H-D-H-M5C
The Festo 547379 is a 10 mm electrical piston gate valve featuring a 2/2-way closed monostable function with a soft sealing principle and positive overlap lap. This component operates at 12V DC within an operating pressure range of -0.09 MPa to 0.7 MPa and delivers a normal nominal flow rate of 150 l/min through M5 pneumatic working ports. Featuring c UL us recognition and an IP40 degree of protection, the unit utilizes piloted control with an external pilot air supply port operating at 0.3 MPa to 0.7 MPa, a pneumatic spring reset, and a non-detenting manual override for installation in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547379
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547379.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 150 l/min
- Pneumatic working port
- M5
- Operating voltage
- 12V DC
- Operating pressure
- -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP40
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.7 MPa
- Pilot pressure
- 3 bar...7 bar
- Switching time off
- 10 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 500 µs
- Max. negative test pulse on 1 signal
- 400 µs
- Coil characteristics
- 12 V DC: 1.0 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 547379. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
