Festo
547531

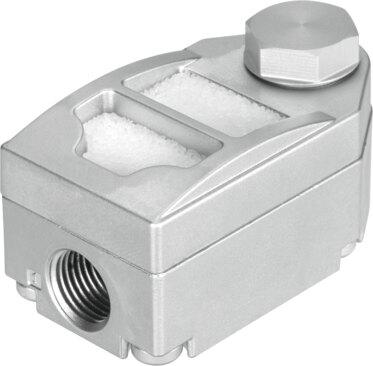

Quick exhaust valve VBQF-U-G18-E
The Festo 547531 is a quick exhaust valve featuring an integrated muffler with G1/8 pneumatic connections on both ports and a screw-in mounting design. Constructed with die-cast aluminum and die-cast zinc housing materials, this component operates within a pressure range of 0.5 bar to 10 bar and supports a standard exhaust flow rate of 1300 l/min from 6 to 0 bar. It delivers a nominal width of 5 mm, a noise level of 75 dB(A), and accommodates compressed air media according to ISO 8573-1:2010 [7:4:4] with optional oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547531
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547531.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Selection of additional function
- with muffler
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Type of mounting
- Screw-in
- Standard ow rate exhaust 6-> 0 bar
- 1300 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 350 l/min
- Operating pressure
- 0.5 bar...10 bar
- Ambient temperature
- -20 °C...80 °C
- Housing material
- Die-cast aluminum | Die-cast zinc
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Nominal width
- 5 mm
- Mounting position
- Any
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -20 °C...80 °C
- Noise level
- 75 dB(A)
- Product weight
- 84.2 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
