Festo
547570

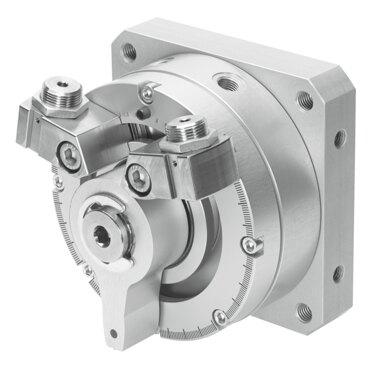

Rotary actuator DSM-12-270-P-A-B
The Festo part number 547570 is a double-acting rotary vane industrial component featuring a size 12 and an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar). It provides a swivel angle and adjustment range from 0 degrees to 270 degrees with a 1.8-degree cushioning angle, a -6-degree precision adjustment, a 15 mm permissible stop radius, and elastic cushioning rings or pads at both ends. Designed with a repetition accuracy of 1 degree and a maximum swivel frequency of 2 Hz at 6 bar, this unit operates with compressed air as per ISO 8573-1:2010 [7:-:-] within an ambient temperature range of -10 °C to 60 °C and allows position sensing via a proximity switch. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547570
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547570.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Cushioning angle
- 1.8 deg
- Adjustment range of swivel angle
- 0 deg...270 deg
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 15 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 90 N
- Max. axial force
- 18 N
- Max. radial force
- 45 N
- Theoretical torque at 6 bar
- 1.25 Nm
- Permissible mass moment of inertia
- 0.005 kgm²
- Product weight
- 275 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
