Festo
547574

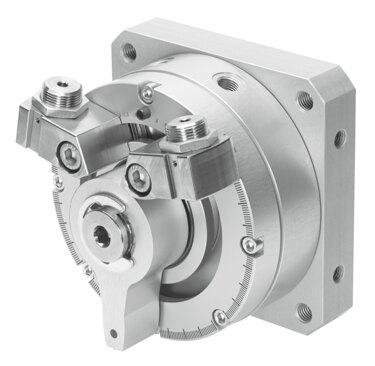

Rotary actuator DSM-16-270-P-A-B
The Festo part number 547574 is a double-acting rotary vane industrial component featuring a size 16 design with an operating pressure range of 0.18 MPa to 1 MPa (1.8 bar to 10 bar). It provides a swivel angle and adjustment range from 0 degrees to 270 degrees with a cushioning angle of 1.4 degrees, precision adjustment of -6 degrees, and repetition accuracy of 1 degree using elastic cushioning rings at both ends. Position sensing is accomplished via proximity switch, operating on compressed air according to ISO 8573-1:2010 [7:-:-] within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547574
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547574.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Cushioning angle
- 1.4 deg
- Adjustment range of swivel angle
- 0 deg...270 deg
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 17 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.18 MPa...1 MPa | 1.8 bar...10 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 160 N
- Max. axial force
- 30 N
- Max. radial force
- 75 N
- Theoretical torque at 6 bar
- 2.5 Nm
- Permissible mass moment of inertia
- 0.01 kgm²
- Product weight
- 470 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 547574. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
