Festo
547584

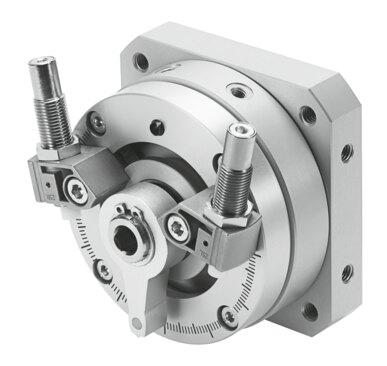

Rotary actuator DSM-32-270-CC-A-B
The Festo part number 547584 is a double-acting rotary vane industrial component featuring a size 32 design with a 12-degree cushioning angle and an adjustable swivel range from 0 to 246 degrees. This unit operates on compressed air according to ISO 8573-1:2010 [7:-:-] at pressures between 0.15 MPa and 1 MPa, incorporating pneumatic shock absorbers at both ends, a 28 mm permissible stop radius, and 0.1-degree repetition accuracy. It is equipped for position sensing via a proximity switch, allows a maximum swivel frequency of 0.7 Hz at 6 bar, and withstands a maximum stop force of 480 N within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547584
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547584.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Cushioning angle
- 12 deg
- Adjustment range of swivel angle
- 0 deg...246 deg
- Swivel angle
- 0 deg...246 deg
- Permissible stop radius
- 28 mm
- Cushioning
- Pneumatic shock absorber at both ends
- Mounting position
- Any
- Precision adjustment
- -3 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. swivel frequency at 6 bar
- 0.7 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 480 N
- Max. axial force
- 75 N
- Max. radial force
- 200 N
- Theoretical torque at 6 bar
- 10 Nm
- Permissible mass moment of inertia
- 0.05 kgm²
- Product weight
- 1460 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 547584. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
