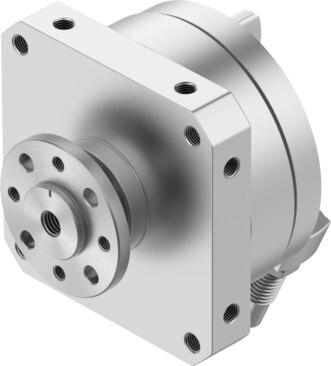

Reference imageConfirm configuration by manufacturer part number.
Festo
547585
Rotary actuator DSM-32-270-CC-FW-A-B
The Festo 547585 is a double-acting industrial component featuring a rotary vane structural design with a size of 32 and a swivel angle range of 0 deg to 246 deg. This unit incorporates pneumatic shock absorbers at both ends for cushioning over a 12 deg cushioning angle, operating within a pressure range of 0.15 MPa to 1 MPa and handling a max swivel frequency of 0.7 Hz at 6 bar. Position sensing is achieved via a proximity switch, while the allowable ambient temperature spans from -10 °C to 60 °C with a maximum stop force of 480 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547585
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547585.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Cushioning angle
- 12 deg
- Adjustment range of swivel angle
- 0 deg...246 deg
- Swivel angle
- 0 deg...246 deg
- Permissible stop radius
- 28 mm
- Cushioning
- Pneumatic shock absorber at both ends
- Mounting position
- Any
- Precision adjustment
- -3 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. swivel frequency at 6 bar
- 0.7 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 480 N
- Max. axial force
- 75 N
- Max. radial force
- 200 N
- Theoretical torque at 6 bar
- 10 Nm
- Permissible mass moment of inertia
- 0.05 kgm²
- Product weight
- 1550 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
