Name: Festo 547593 Rotary actuator DSM-25-270-A-B
Brand: Festo

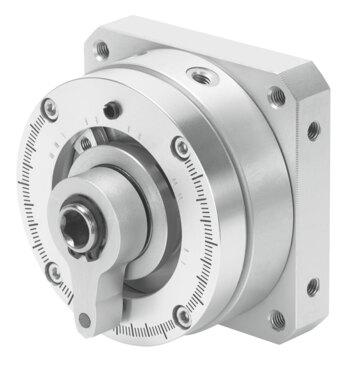

Rotary actuator DSM-25-270-A-B

The Festo 547593 is a double-acting rotary vane industrial component featuring a size 25 designation and an adjustable swivel angle from 0 degrees to 270 degrees. Operating within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), this unit delivers a theoretical torque of 5 Nm at 6 bar with a maximum swivel frequency of 2 Hz. It supports a permissible stop radius of 21 mm, a maximum stop force of 320 N, and functions with compressed air matching ISO 8573-1:2010 [7:-:-] standards across any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 547593
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 547593.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 25
Swivel angle: 0 deg...270 deg
Permissible stop radius: 21 mm
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: None
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Max. swivel frequency at 6 bar: 2 Hz
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Max. stop force: 320 N
Max. axial force: 50 N
Max. radial force: 120 N
Theoretical torque at 6 bar: 5 Nm
Product weight: 620 g
Type of mounting: With internal thread
Pneumatic connection: M5
Note on materials: RoHS compliant
Drive shaft material: Steel | Nickel-plated
Seals material: TPE-U(PU)
Housing material: Anodized aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 547593. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
