Festo
547701

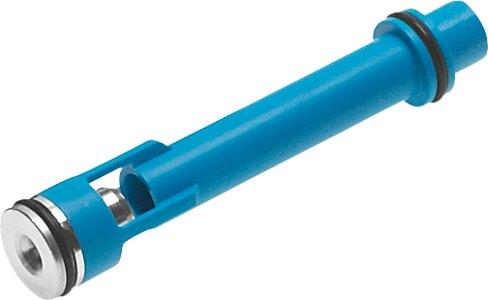

Vacuum generator cartridge VN-20-H
The Festo 547701 is an industrial component featuring a 2 mm Laval nozzle nominal width and standard, high negative pressure ejector characteristics. Operating across a pressure range of 1 bar to 8 bar with a 6 bar nominal operating pressure, it delivers a maximum vacuum of 92% and a maximum suction rate of 98 l/min with respect to the atmosphere. Constructed with a wrought aluminum alloy jet nozzle, POM female nozzle, and NBR seals, this 3.75 g unit achieves a 92% maximum vacuum and an air supply time of 0.23 s at nominal operating pressure. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547701
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547701.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2 mm
- Mounting position
- Any
- Ejector characteristics
- Standard | High negative pressure
- Operating pressure
- 1 bar...8 bar
- Operating pressure for max. vacuum
- 3.5 bar
- Max. vacuum
- 92 %
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 98 l/min
- Air supply time at nominal operating pressure
- 0.23 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 3.75 g
- Seals material
- NBR
- Female nozzle material
- POM
- Material of jet nozzle
- Wrought aluminum alloy
