Festo
547888
Connecting cable NEBV-M12G8-KD-3-M12G4
This Festo industrial component, part number 547888, is a Y-distributor with cables at both ends featuring a 1 to 2 distributor type designed for the distribution of analog inputs and outputs of a proportional pressure control valve. Conforming to DIN 47100 and EN 61076-2-101 standards, the unit includes an M12x1 A-coded straight socket on the field device side with 8 pins (5 occupied) and a screw-type lock, alongside an M12x1 A-coded straight plug on the control side with 4 pins, and mounts using a through-hole for an M3 screw without a label holder. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547888
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547888.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100 | EN 61076-2-101
- Structural design
- Y-distributor with cables at both ends
- Distributor type
- 1 to 2
- Additional functions
- Distribution of the analog inputs and outputs of a proportional pressure | control valve
- Cable designation
- Without label holder
- Type of mounting
- With through-hole for M3 screw
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight

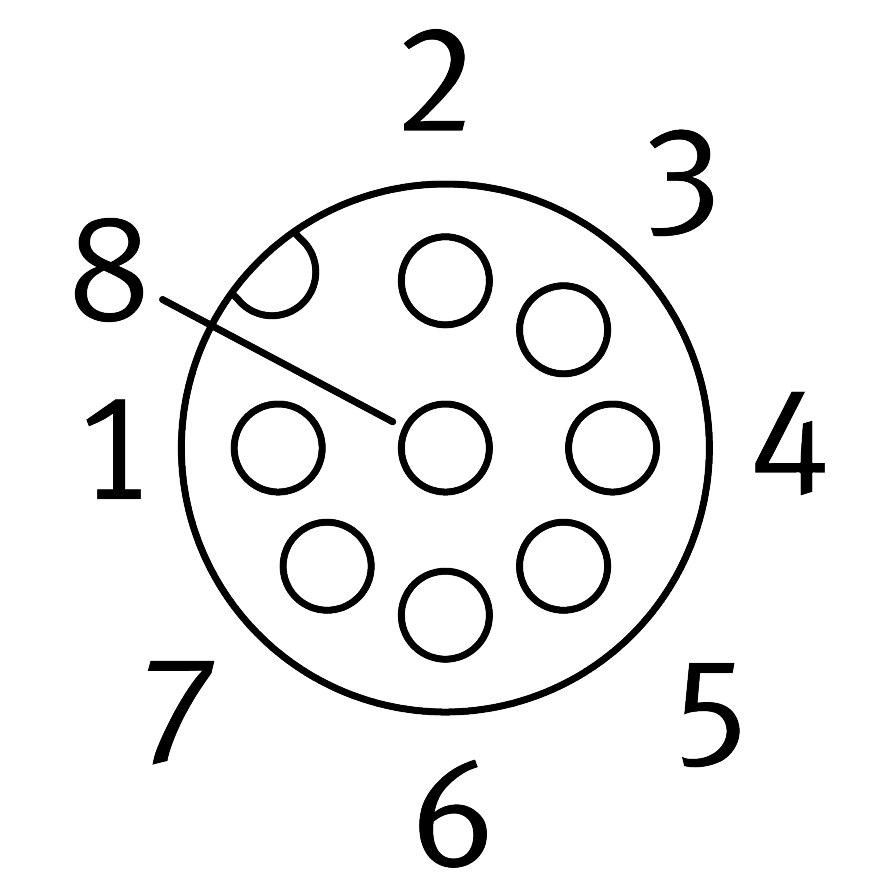

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock
- Electrical connection 3, function
- Control side
- Electrical connection 3, design
- Round
- Electrical connection 3, connection type
- Plug
- Electrical connection 3, cable outlet
- Straight
- Electrical connection 3, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 3, number of pins/wires
- 4
