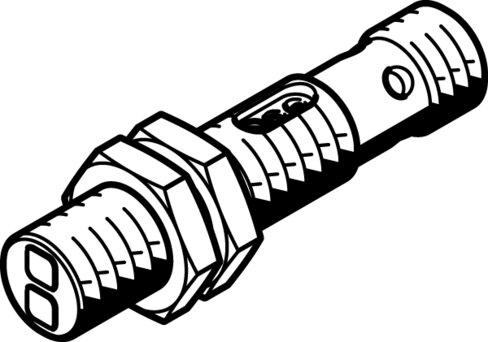

Reference imageConfirm configuration by manufacturer part number.
Festo
547907
Diffuse scan SOEG-RT-M12-NS-S-2L
The Festo part number 547907 is a round optoelectronic diffuse sensor utilizing red light for position measurement within a working range of 70 mm to 300 mm. This component conforms to EN 60947-5-2 with an NPN switching output, light switching element function, 30 mm hysteresis, and a maximum switching frequency of 1000 Hz. Operating on a DC voltage range from 10 V to 36 V, it features pulsed short-circuit protection, 200 mA max output current, 2 V voltage drop, and 20% residual ripple across an ambient temperature range of -25 °C to 55 °C. Certified with RCM compliance, c UL us listing, and CE/UKCA markings as per EU and UK EMC and RoHS directives, this unit is available for procurement. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547907
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547907.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Diffuse sensor
- Type of light
- Red
- Working range
- 70 mm...300 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- NPN
- Switching element function
- Light switching
- Hysteresis
- 30 mm
- Max. switching frequency
- 1000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20%
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | M12x1 | Plug
- Size
- M12
- Type of mounting
- With locknut
- Tightening torque
- 10 Nm
- Mounting position
- Any
- Product weight
- 20 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 547907. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
