Festo
547912

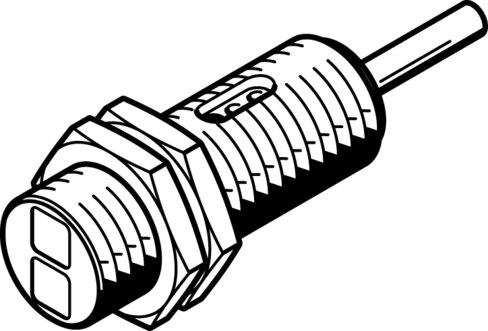

Diffuse scan SOEG-RT-M18-PA-K-2L
The Festo 547912 is a round industrial component utilizing an optoelectronic diffuse sensor measuring principle with red light to detect position within a working range of 40 mm to 600 mm. Operating on a 10 V to 36 V DC voltage range with a 20% residual ripple, this PNP switching output device features an antivalent switching element function, a 60 mm hysteresis, a maximum switching frequency of 1000 Hz, a maximum output current of 200 mA, a 2 V voltage drop, and pulsed short-circuit protection across an ambient temperature range of -25 °C to 55 °C. It conforms to EN 60947-5-2, carries RCM compliance and c UL us - Listed (OL) certifications, and features CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 547912
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 547912.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Diffuse sensor
- Type of light
- Red
- Working range
- 40 mm...600 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- PNP
- Switching element function
- Antivalent
- Hysteresis
- 60 mm
- Max. switching frequency
- 1000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20%
- Idle current
- 20 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 4-core | Cable
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PUR)
- Insulating sheath material
- PVC
- Size
- M18
- Type of mounting
- With locknut
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 547912. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
