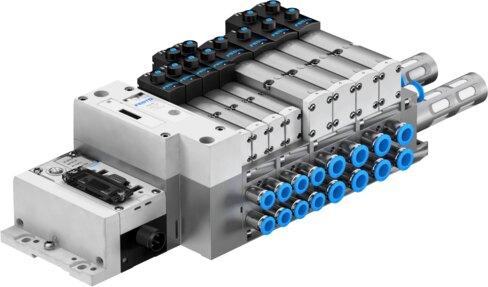

Name: Festo 547966 Valve manifold VTSA-F-FB-NPT
Brand: Festo

Valve manifold VTSA-F-FB-NPT

The Festo part number 547966 is an industrial component featuring electrical actuation via Ethernet, fieldbus, and an integrated controller, alongside an integrated electrical I/O system and valve terminal type 45. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within a pressure range of -0.9 bar to 10 bar and an ambient temperature range of -5 °C to 50 °C, offering IP65 and NEMA 4 protection. The unit complies with EU EMC directives, UKCA EMC and RoHS instructions, and holds BIA, C-Tick, and c UL us recognitions with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 547966
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 547966.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: Ethernet | Fieldbus | Integrated controller
Electrical I/O system: Yes
Valve terminal type: 45
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...60 °C
Relative air humidity: 0 - 90%
Degree of protection: IP65 | NEMA 4
Corrosion resistance class (CRC): 0 - No corrosion stress
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...1 MPa
Pilot pressure: 3 bar...10 bar
Operating pressure for valve manifold with internal pilot air supply: 0.3 MPa...1 MPa | 3 bar...10 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Certication: BIA | C-Tick | c UL us - recognized (OL)
Note on materials: RoHS compliant
Valve manifold design: Modular, pneumatic valve sizes can be mixed
Max. no. of valve positions: 32
Max. no. of pressure zones: 16
Actuation type: Electrical
Valve function: 2x2/2 closed, monostable | 2x3/2 closed, monostable

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 547966. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
