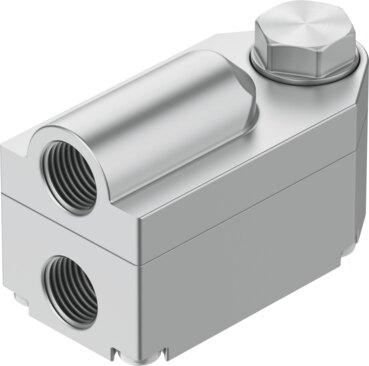

Reference imageConfirm configuration by manufacturer part number.
Festo
548003
Quick exhaust valve VBQF-D-G14-E
The Festo part number 548003 is a quick exhaust valve featuring G1/4 pneumatic connections for ports 1, 2, and 3, along with a screw-in mounting type and a nominal width of 7 mm. Constructed with a die-cast aluminum and die-cast zinc housing, this component operates within a pressure range of 0.5 bar to 10 bar and handles compressed air according to ISO 8573-1:2010 [7:4:4] with a temperature range of -20 °C to 80 °C. It achieves a standard nominal flow rate of 1500 l/min for exhaust air (6 to 5 bar), 2500 l/min for exhaust (6 to 0 bar), and 960 l/min for pressurization (6 to 5 bar) while supporting oil-lubricated operation and maintaining an ISO Class 4 cleanroom suitability. Submit your exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548003
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548003.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Type of mounting
- Screw-in
- Standard nominal ow rate exhaust air 6->5 bar
- 1500 l/min
- Standard ow rate exhaust 6-> 0 bar
- 2500 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 960 l/min
- Operating pressure
- 0.5 bar...10 bar
- Ambient temperature
- -20 °C...80 °C
- Housing material
- Die-cast aluminum | Die-cast zinc
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Nominal width
- 7 mm
- Mounting position
- Any
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -20 °C...80 °C
- Product weight
- 253 g
- Pneumatic connection 3
- G1/4
- Note on materials
- RoHS compliant
- Seals material
- NBR
