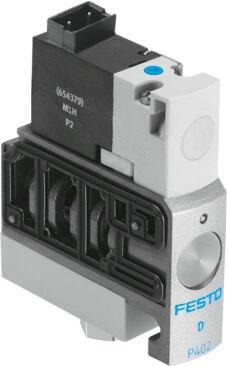

Name: Festo 548036 Air solenoid valve CPVSC1-M1HT-N-T-M5O
Brand: Festo

Air solenoid valve CPVSC1-M1HT-N-T-M5O

The Festo 548036 is a 10 mm electrical piston gate valve featuring a 3/2-way monostable open configuration and a normal nominal flow rate of 170 l/min normalized to DIN 1343. This component operates at 24V DC with an operating pressure range of -0.09 MPa to 0.7 MPa, utilizing an external pilot air supply port and a pneumatic spring reset method. Designed with M5 pneumatic working ports, a soft sealing principle, and IP40 degree of protection, the unit holds c UL us recognition. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 548036
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 548036.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 170 l/min
Pneumatic working port: M5
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Degree of protection: IP40
Exhaust air function: Cannot be throttled
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Positive overlap
Pilot pressure MPa: 0.3 MPa...0.7 MPa
Pilot pressure: 3 bar...7 bar
Switching time oﬀ: 10 ms
On switching time: 10 ms
Max. positive test pulse with 0 signal: 500 µs
Max. negative test pulse on 1 signal: 400 µs
Coil characteristics: 24 V DC: 1.0 W
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
