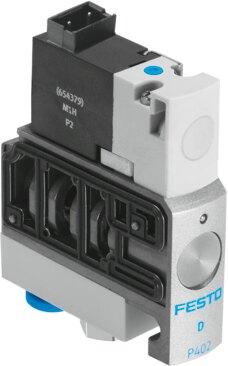

Name: Festo 548047 Air solenoid valve CPVSC1-M1HT-N-T-Q4O
Brand: Festo

Air solenoid valve CPVSC1-M1HT-N-T-Q4O

The Festo part number 548047 is a 10 mm electrical industrial component featuring a 3/2-way monostable open valve function with a piston gate valve structural design and soft sealing principle. This piloted component operates on 24V DC with an operating pressure range of -0.09 MPa to 0.7 MPa, a normal nominal flow rate of 170 l/min, and an external pilot air supply requiring a pilot pressure of 0.3 MPa to 0.7 MPa. It is equipped with QS-4 pneumatic working ports, a pneumatic spring reset method, non-detenting manual override, and carries c UL us recognition with an IP40 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 548047
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 548047.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 170 l/min
Pneumatic working port: QS-4
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Degree of protection: IP40
Exhaust air function: Cannot be throttled
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Positive overlap
Pilot pressure MPa: 0.3 MPa...0.7 MPa
Pilot pressure: 3 bar...7 bar
Switching time oﬀ: 10 ms
On switching time: 10 ms
Max. positive test pulse with 0 signal: 500 µs
Max. negative test pulse on 1 signal: 400 µs
Coil characteristics: 24 V DC: 1.0 W
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 548047. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
