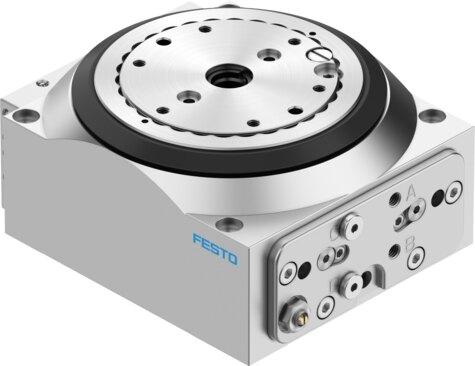

Reference imageConfirm configuration by manufacturer part number.
Festo
548079
Rotary indexing table DHTG-65-8-A
The Festo 548079 is a double-acting industrial component featuring a gear coupling, gear rack/pinion, and positively driven motion sequence with an adjustable pneumatic shock absorber with a hard characteristic curve. It operates within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes provision for position sensing via inductive sensors. Designed with a size 65 frame, it achieves a plate parallelism of 0.04 mm, axial eccentricity and concentricity of 0.02 mm, and a swivel angle repetition accuracy of 0.03 degrees while maintaining an IP54 degree of protection and moderate corrosion resistance (CRC 2). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548079
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548079.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 65
- Parallelism of plate
- 0.04 mm
- Axial eccentricity of plate
- 0.02 mm
- Plate concentricity
- 0.02 mm
- Repetition accuracy of swivel angle
- 0.03 deg
- Cushioning
- Pneumatic shock absorber, hard characteristic curve, adjustable
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear coupling | Gear rack/pinion | Positively driven motion sequence
- Position sensing
- For inductive sensors
- Spacing
- 8
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...80 °C
- Noise level
- 70 dB(A)
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 160 kgcm²
- Max. axial force static
- 1000 N
- Max. pull-out torque static
- 100 Nm
- Max. radial force static
- 2000 N
- Max. tangential torque static
- 100 Nm
