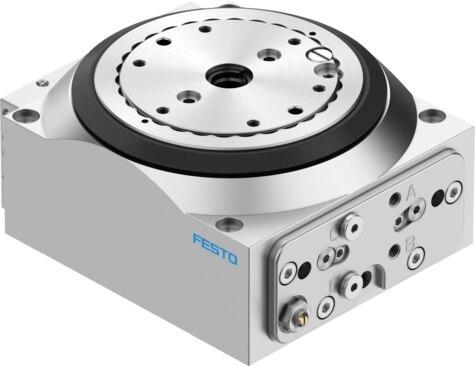

Name: Festo 548081 Rotary indexing table DHTG-65-24-A
Brand: Festo

Rotary indexing table DHTG-65-24-A

The Festo 548081 is a double-acting industrial component featuring a gear coupling, gear rack/pinion, and positively driven motion sequence with a size 65 designation and adjustable pneumatic shock absorber cushioning with a hard characteristic curve. It operates within a pressure range of 0.3 MPa to 0.8 MPa utilizing compressed air as per ISO 8573-1:2010 [7:4:4], and includes position sensing for inductive sensors alongside a plate parallelism of 0.04 mm, axial eccentricity of 0.02 mm, and swivel angle repetition accuracy of 0.03 degrees. Built for installation in any mounting position, this unit delivers a degree of protection of IP54 and a moderate corrosion stress resistance of CRC 2. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 548081
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 548081.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 65
Parallelism of plate: 0.04 mm
Axial eccentricity of plate: 0.02 mm
Plate concentricity: 0.02 mm
Repetition accuracy of swivel angle: 0.03 deg
Cushioning: Pneumatic shock absorber, hard characteristic curve, adjustable
Mounting position: Any
Mode of operation: Double-acting
Structural design: Gear coupling | Gear rack/pinion | Positively driven motion sequence
Position sensing: For inductive sensors
Spacing: 24
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...80 °C
Noise level: 70 dB(A)
Degree of protection: IP54
Ambient temperature: 5 °C...60 °C
Mass moment of inertia: 160 kgcm²
Max. axial force static: 1000 N
Max. pull-out torque static: 100 Nm
Max. radial force static: 2000 N
Max. tangential torque static: 100 Nm
