548090

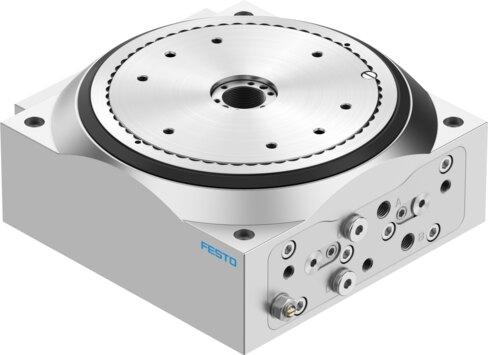

Name: Festo 548090 Rotary indexing table DHTG-140-8-A
Brand: Festo

Rotary indexing table DHTG-140-8-A

The Festo part number 548090 is a double-acting industrial component featuring a size 140 structural design with gear coupling, gear rack/pinion, and a positively driven motion sequence, operating at pressures from 0.3 MPa to 0.8 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. It delivers a plate parallelism of 0.04 mm, axial eccentricity and concentricity of 0.02 mm, a swivel angle repetition accuracy of 0.03 deg, and utilizes adjustable pneumatic shock absorber cushioning with a hard characteristic curve. Rated with an IP54 degree of protection and a moderate corrosion resistance class (CRC 2), this unit accommodates inductive sensors and functions within an ambient temperature range of 5 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 548090
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 548090.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 140
Parallelism of plate: 0.04 mm
Axial eccentricity of plate: 0.02 mm
Plate concentricity: 0.02 mm
Repetition accuracy of swivel angle: 0.03 deg
Cushioning: Pneumatic shock absorber, hard characteristic curve, adjustable
Mounting position: Any
Mode of operation: Double-acting
Structural design: Gear coupling | Gear rack/pinion | Positively driven motion sequence
Position sensing: For inductive sensors
Spacing: 8
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...80 °C
Noise level: 70 dB(A)
Degree of protection: IP54
Ambient temperature: 5 °C...60 °C
Mass moment of inertia: 3000 kgcm²
Max. axial force static: 4000 N
Max. pull-out torque static: 300 Nm
Max. radial force static: 6000 N
Max. tangential torque static: 200 Nm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 548090. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
