Festo
548206

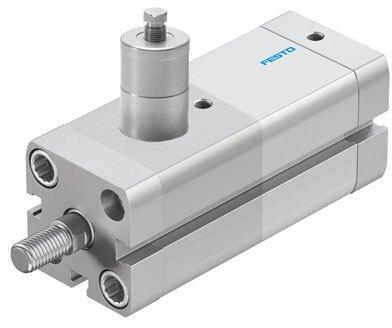

Compact cylinder ADN-20- -KP-
The Festo 548206 is a double-acting industrial component built on the ISO 21287 norm featuring a 20 mm piston diameter, an M8 piston rod thread with internal threading, and a variable stroke ranging from 10 mm to 300 mm. Operating within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and temperatures from -10 °C to 80 °C, this structural design utilizes elastic cushioning rings at both ends, position sensing via proximity switch, and allows for oil-lubricated compressed air operation. Available variants include extended external or special piston rod threads, extended piston rods, and laser-etched rating plates achieving a moderate corrosion resistance class (CRC 2). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548206
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548206.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...300 mm
- Piston diameter
- 20 mm
- Piston rod thread
- M8
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Clamping type with active direction
- Both sides
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Laser etched rating plate
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.2 J
- Theoretical force at 6 bar, retracting
- 141 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass at 0 mm stroke
- 53 g
- Additional moving mass per 10 mm stroke
- 6 g
- Basic weight with 0 mm stroke
- 282 g
- Additional weight per 10 mm stroke
- 22 g
- Type of mounting
- With internal thread | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548206. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
