Festo
548209

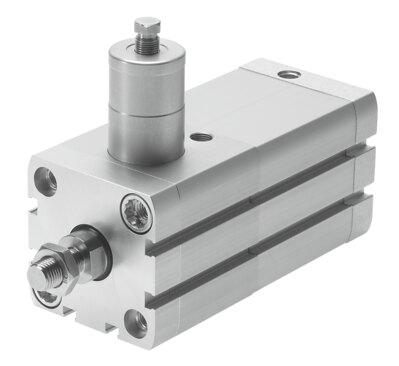

Compact cylinder ADN-40- -KP-
The Festo 548209 is a double-acting industrial component featuring a 40 mm piston diameter, an M10x1.25 internal piston rod thread, and a stroke length ranging from 10 mm to 400 mm based on the ISO 21287 norm. Built with elastic cushioning rings at both ends, a structural design comprising a piston, piston rod, and cylinder barrel, and position sensing via proximity switch, it operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.15 MPa to 1 MPa pressure range. The unit accommodates any mounting position, active clamping on both sides, and offers an ambient temperature range of -10 °C to 80 °C alongside a theoretical retracting force of 633 N at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548209
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548209.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...400 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M10x1.25
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Clamping type with active direction
- Both sides
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Laser etched rating plate
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.7 J
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass at 0 mm stroke
- 173 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 789 g
- Additional weight per 10 mm stroke
- 45 g
- Type of mounting
- With internal thread | With accessories
