Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

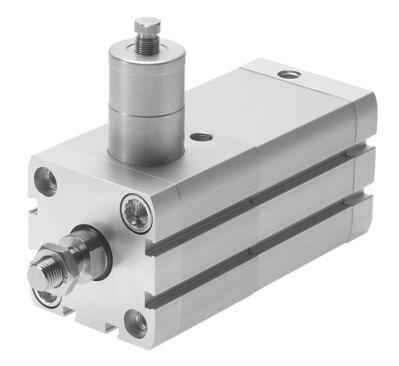

Reference imageConfirm configuration by manufacturer part number.
Festo
548210
Compact cylinder ADN-50- -KP-
The Festo 548210 is a double-acting industrial component built to ISO 21287 standards featuring a 50 mm piston diameter, an M12x1.25 piston rod thread with an internal thread end, and a stroke length ranging from 10 mm to 400 mm. Operating via compressed air according to ISO 8573-1:2010 [7:4:4] at pressures between 0.15 MPa and 1 MPa (1.5 bar to 10 bar), this unit incorporates elastic cushioning rings at both ends, active clamping on both sides, position sensing via proximity switch, and a structural design comprising a piston, piston rod, and cylinder barrel. It delivers a theoretical retracting force of 990 N at 6 bar while accommodating any mounting position, an ambient temperature range of -10 °C to 80 °C, a 1 J end-position impact energy, moderate corrosion resistance (CRC 2), and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548210
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548210.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...400 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M12x1.25
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Clamping type with active direction
- Both sides
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Laser etched rating plate
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 1 J
- Theoretical force at 6 bar, retracting
- 990 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Moving mass at 0 mm stroke
- 296 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 1268 g
- Additional weight per 10 mm stroke
- 60 g
- Type of mounting
- With internal thread | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548210. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
