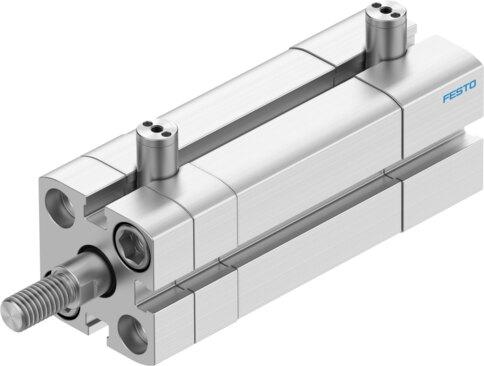

Reference imageConfirm configuration by manufacturer part number.
Festo
548214
Compact cylinder ADN-20- -EL-
The Festo 548214 is a double-acting industrial component based on the ISO 21287 norm, featuring a 20 mm piston diameter, an M8 piston rod thread with an internal thread end, and a stroke range from 10 mm to 300 mm. Operating within a pressure range of 0.25 MPa to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4], this unit provides elastic cushioning rings at both ends, position sensing via proximity switch, and a corrosion resistance class of CRC 2. At 6 bar, it delivers a theoretical retracting force of 141 N and an advancing force of 188 N across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548214
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548214.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...300 mm
- Piston diameter
- 20 mm
- Piston rod thread
- M8
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- With end-position locking at both ends | With rear end-position locking | With front end-position locking | Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Laser etched rating plate
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.2 J
- Theoretical force at 6 bar, retracting
- 141 N
- Theoretical force at 6 bar, advancing
- 188 N
- Additional moving mass per 10 mm stroke
- 6 g
- Type of mounting
- With internal thread | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
