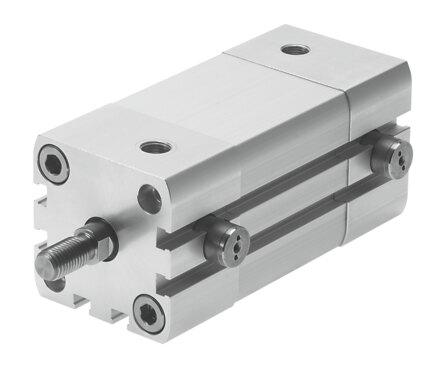

Reference imageConfirm configuration by manufacturer part number.
Festo
548218
Compact cylinder ADN-50- -EL-
The Festo 548218 is a double-acting industrial component based on the ISO 21287 norm featuring a 50 mm piston diameter, an M12x1.25 internal thread piston rod, and an adjustable stroke ranging from 10 mm to 400 mm. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.15 MPa to 1 MPa, this unit incorporates elastic cushioning rings at both ends, position sensing via proximity switch, and a moderate corrosion resistance class (CRC 2). It delivers theoretical forces of 1057 N retracting and 1178 N advancing at 6 bar across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548218
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548218.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...400 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M12x1.25
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- With end-position locking at both ends | With rear end-position locking | With front end-position locking | Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Laser etched rating plate
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Theoretical force at 6 bar, retracting
- 1057 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Additional moving mass per 10 mm stroke
- 16 g
- Type of mounting
- With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548218. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
