Festo
548371

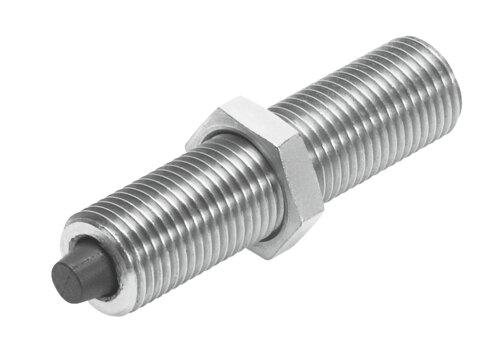

Shock absorber DYEF-M5-Y1F
The Festo 548371 is an industrial component featuring an M5 size, a 2.8 mm stroke, and a product weight of 2.9 g. Constructed with a high-alloy steel housing, NBR seals, and elastic cushioning rings at both ends with a metallic fixed stop, it operates within an ambient temperature range of 0 °C to 60 °C. This RoHS-compliant part supports mounting in any position using a locknut, offering a maximum impact velocity of 0.8 m/s, a maximum energy absorption of 0.02 J per stroke, and a moderate corrosion resistance class (CRC 2). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548371
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548371.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M5
- Stroke
- 2.8 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with metallic xed stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 2.8 mm
- Max. energy absorption per stroke
- 0.02 J
- Product weight
- 2.9 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
