Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

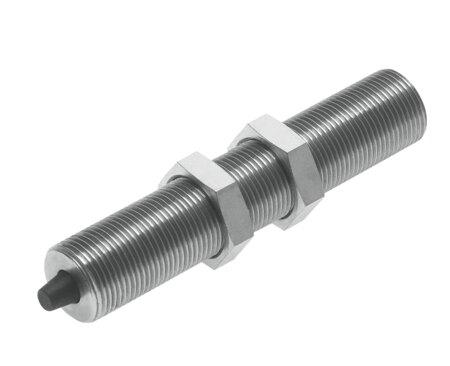

Reference imageConfirm configuration by manufacturer part number.
Festo
548374
Shock absorber DYEF-M10-Y1F
The Festo 548374 is an M10 industrial component featuring a 3.7 mm stroke and elastic cushioning rings at both ends with a metallic fixed stop. Constructed with a high-alloy steel housing and NBR seals, this 19.7 g unit supports any mounting position via a locknut and offers a maximum energy absorption of 0.06 J per stroke at an impact velocity up to 0.8 m/s. It operates within an ambient temperature range of 0 °C to 60 °C, achieves corrosion resistance class 2, and complies with VDMA24364-B1/B2-L LABS conformity and RoHS material directives without position sensing. Submit part number 548374, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548374
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548374.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M10
- Stroke
- 3.7 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with metallic xed stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 3.7 mm
- Max. energy absorption per stroke
- 0.06 J
- Product weight
- 19.7 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548374. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
