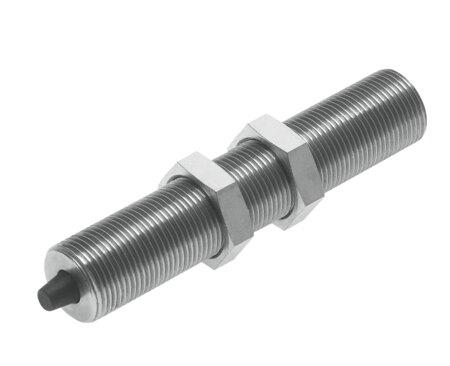

Reference imageConfirm configuration by manufacturer part number.
Festo
548375
Shock absorber DYEF-M12-Y1F
The Festo 548375 is an M12 industrial component featuring a 4.2 mm stroke and a product weight of 39.6 g, constructed with a high-alloy steel housing and NBR seals. It incorporates elastic cushioning rings and pads at both ends with a metallic fixed stop, delivering a maximum energy absorption of 0.12 J per stroke at a maximum impact velocity of 0.8 m/s. Designed for mounting in any position with a locknut, this RoHS-compliant unit provides CRC 2 moderate corrosion stress resistance and VDMA24364-B1/B2-L LABS conformity within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548375
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548375.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M12
- Stroke
- 4.2 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with metallic xed stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 4.2 mm
- Max. energy absorption per stroke
- 0.12 J
- Product weight
- 39.6 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548375. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
