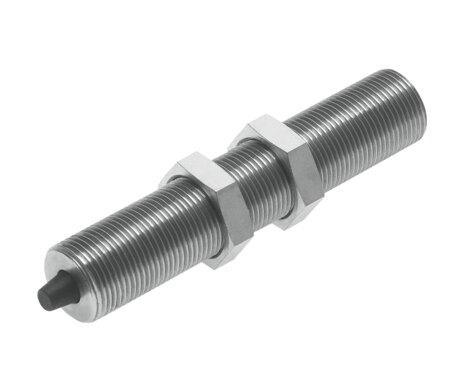

Reference imageConfirm configuration by manufacturer part number.
Festo
548376
Shock absorber DYEF-M14-Y1F
The Festo 548376 is an M14 industrial component featuring a 5 mm stroke and elastic cushioning rings/pads at both ends with a metallic fixed stop. Weighing 77.3 g, it incorporates a high-alloy steel housing, NBR seals, and is mounted using a locknut in any position without position sensing. This RoHS-compliant unit operates within an ambient temperature range of 0 °C to 60 °C, offering a 5 mm cushioning length, 0.2 J maximum energy absorption per stroke, and 0.8 m/s maximum impact velocity under CRC 2 moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548376
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548376.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M14
- Stroke
- 5 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with metallic xed stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 5 mm
- Max. energy absorption per stroke
- 0.2 J
- Product weight
- 77.3 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548376. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
