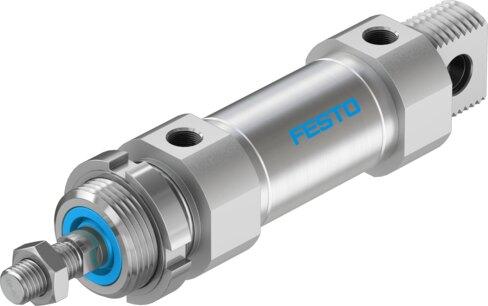

Reference imageConfirm configuration by manufacturer part number.
Festo
548488
Round cylinder DSNU-1 1/4"- -P-A
The Festo 548488 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 3/8-24 UNF-2A external piston rod thread, and an adjustable stroke ranging from 0.4 in to 20 in based on the ISO 6431 norm. Designed with elastic cushioning rings at both ends, this unit operates within a pressure range of 1 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4] with possible oil lubrication, delivering a theoretical force of 96.5 lbf advancing and 83 lbf retracting at 6 bar. It supports any mounting position, incorporates position sensing via a proximity switch, and exhibits a moderate corrosion resistance class (CRC) of 2 alongside an ambient temperature tolerance of -4 °F to 176 °F. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.4 in...20 in
- Piston diameter
- 1 1/4"
- Piston rod thread
- 3/8-24 UNF-2A
- Based on norm
- ISO 6431
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.295 ft-lbf
- Theoretical force at 6 bar, retracting
- 83 lbf
- Theoretical force at 6 bar, advancing
- 96.5 lbf
- Moving mass at 0 mm stroke
- 4.27 oz
- Additional weight per 10 mm stroke
- 0.317 oz
- Type of mounting
- With accessories
- Pneumatic connection
- 1/8 NPT
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
