548539

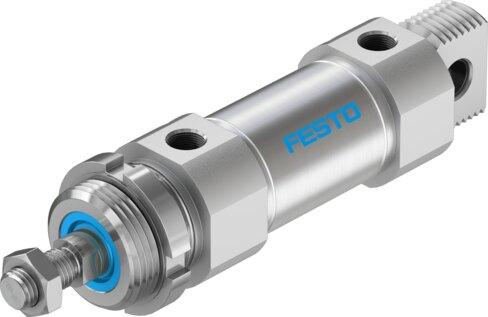

Name: Festo 548539 Round cylinder DSNU-1 5/8"- -PPV-A
Brand: Festo

Round cylinder DSNU-1 5/8"- -PPV-A

The Festo part number 548539 is a double-acting industrial component featuring a 1 5/8" piston diameter, a 1/2-20 UNF-2A piston rod thread, and an adjustable pneumatic cushioning system at both ends based on the ISO 6431 norm. It operates within a pressure range of 1 bar to 10 bar (0.1 MPa to 1 MPa) across ambient temperatures from -4 °F to 176 °F, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with oil lubrication support. This variant incorporates position sensing via a proximity switch, a 0.4 in to 20 in stroke, and yields a theoretical retracting force of 127 lbf at 6 bar while maintaining a corrosion resistance class of 2 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 548539
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 548539.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.4 in...20 in
Piston diameter: 1 5/8"
Piston rod thread: 1/2-20 UNF-2A
Based on norm: ISO 6431
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Piston rod end: External thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -4 °F...176 °F
Impact energy in the end positions: 0.516 ft-lbf
Cushioning length: 0.71 in
Theoretical force at 6 bar, retracting: 127 lbf
Theoretical force at 6 bar, advancing: 151 lbf
Moving mass at 0 mm stroke: 8.11 oz
Additional weight per 10 mm stroke: 0.564 oz
Type of mounting: With accessories
Pneumatic connection: 1/4 NPT
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy
Seals material: NBR | TPE-U(PU)
Piston rod material: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 548539. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
