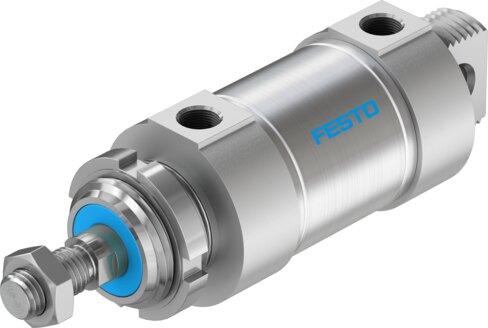

Reference imageConfirm configuration by manufacturer part number.
Festo
548541
Round cylinder DSNU-2 1/2"- -PPV-A
The Festo 548541 is a double-acting industrial component featuring a 2 1/2" piston diameter, a stroke length ranging from 0.4 in to 20 in, and an operating pressure of 1 bar to 10 bar based on ISO 6431. This piston rod variant includes an external 5/8-18 UNF-2A thread, adjustable pneumatic cushioning at both ends, position sensing via proximity switch, and a theoretical retracting force of 336 lbf at 6 bar. Engineered for an ambient temperature range of -4 °F to 176 °F, it functions with compressed air matching ISO 8573-1:2010 [7:4:4] standards and offers moderate corrosion resistance with a CRC rating of 2. Submit part number 548541 along with your required quantity and application specifications to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548541
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548541.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.4 in...20 in
- Piston diameter
- 2 1/2"
- Piston rod thread
- 5/8-18 UNF-2A
- Based on norm
- ISO 6431
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.959 ft-lbf
- Cushioning length
- 0.83 in
- Theoretical force at 6 bar, retracting
- 336 lbf
- Theoretical force at 6 bar, advancing
- 374 lbf
- Moving mass at 0 mm stroke
- 16.2 oz
- Additional weight per 10 mm stroke
- 0.882 oz
- Type of mounting
- With accessories
- Pneumatic connection
- 3/8 NPT
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
- Piston rod material
- high-alloy stainless steel
