Festo
548753

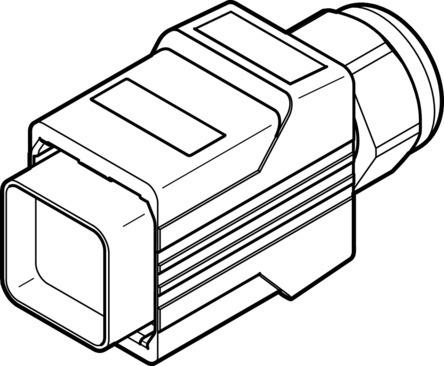

Cover cap CPX-M-AK-C
The Festo part number 548753 is an industrial component featuring a nickel-plated die-cast zinc housing with dimensions of 30 mm width, 58 mm height, and 22 mm length, totaling a product weight of 54 g. Equipped with NBR seals, this RoHS-compliant unit delivers IP65 and IP67 degrees of protection when mounted according to IEC 60529, alongside a corrosion resistance class of CRC 1 and LABS conformity to VDMA24364-B2-L. It operates within an ambient temperature range of -5 °C to 50 °C, a storage range of -40 °C to 70 °C, relative air humidity of 5 to 90 percent non-condensing, and holds UL94 V0 certification. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548753
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548753.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 30 mm
- Height
- 58 mm
- Length
- 22 mm
- Certication
- UL94 V0
- Product weight
- 54 g
- Degree of protection
- IP65 | IP67 | In mounted state | as per IEC 60529
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -40 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- Die-cast zinc | Nickel-plated
- Seals material
- NBR
- Relative air humidity
- 5 - 90 % | Non-condensing
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548753. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
