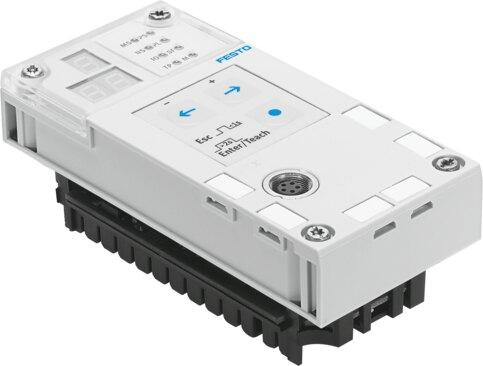

Name: Festo 548931 End position controller CPX-CMPX-C-1-H1
Brand: Festo

End position controller CPX-CMPX-C-1-H1

The Festo 548931 is an industrial component measuring 50 mm by 107 mm by 55 mm with a product weight of 140 g, featuring 1 axis string and 1 axis per string. It operates on a nominal DC voltage of 24 V within a DC operating voltage range of 18 V to 30 V, drawing 80 mA of current at nominal operating voltage with a permissible load current of 2.5 A and a load voltage range of 20 V to 30 V DC. Equipped with a 7-segment display and 3 control keys, the unit provides module-orientated diagnostics via the local display and maintains an IP65 degree of protection according to IEC 60529 alongside VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 548931
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 548931.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 50 mm x 107 mm x 55 mm
Diagnostics: Module-orientated diagnostics | Via local 7-segment display
Max. number of modules: 10
Display: 7-segment display
Control elements: 3 keys
DC operating voltage range: 18 V...30 V
Load voltage range DC: 20 V...30 V
Nominal voltage DC: 24 V
Nominal operating voltage DC: 24 V
Current consumption at nominal operating voltage: 80 mA
Permissible load current: 2.5 A
Continuous shock resistance to DIN/IEC 68 Part 2-29: Tested as per severity level 2
LABS (PWIS) conformity: VDMA24364-B2-L
Relative air humidity: 5 - 95% | Non-condensating
Degree of protection: IP65 | As per IEC 60529
Vibration resistance to DIN/IEC 68 Part 2-6: Tested as per severity level 2
Ambient temperature: -5 °C...50 °C
Product weight: 140 g
Axes per string: 1
No. of axis strings: 1
Electrical connection, control interface: Socket | M9 | 5-pin
Cable length: 30 m
Control interface: digital | CAN bus with Festo protocol | Terminating resistor integrated
Housing material: PA-reinforced

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 548931. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
