Festo
548932

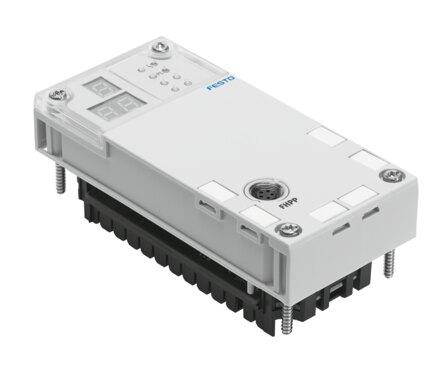

Servo pneumatic controller CPX-CMAX-C1-1
The Festo 548932 industrial component measures 50 mm x 107 mm x 55 mm with a product weight of 240 g and supports up to 8 modules for batch processing and direct operation with force control. This IP65-rated unit operates on a nominal DC voltage of 24 V within an 18 V to 30 V range, featuring internal electronic fusing for operating voltage and load supply, module-orientated diagnostics, and a local 7-segment display with status indications for power load, axis X diagnostics, and module state. It functions in ambient temperatures from -5 °C to 50 °C and relative air humidity up to 95% non-condensating, while complying with VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 548932
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 548932.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 50 mm x 107 mm x 55 mm
- Operating modes
- Batch processing | Direct operation
- Diagnostics
- Module-orientated diagnostics | Via local 7-segment display
- Max. number of modules
- 8
- Controller function
- Force control
- Display
- 7-segment display
- Status indications
- Power load | Display/Error Axis X | MC Axis X | Module state
- Fuse protection (short circuit)
- Internal electronic fuse for operating voltage | Internal electronic fuse for load supply
- DC operating voltage range
- 18 V...30 V
- Load voltage range DC
- 20 V...30 V
- Nominal voltage DC
- 24 V
- Nominal operating voltage DC
- 24 V
- Power failure buffering
- 10 ms
- Current consumption at nominal operating voltage
- 200 mA
- Permissible load current
- 2.5 A
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 240 g
- Axes per string
- 1
- No. of axis strings
- 1
- Max. cable length
- 30 m
- Electrical connection, control interface
- Socket | M9 | 5-pin
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 548932. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
