549042

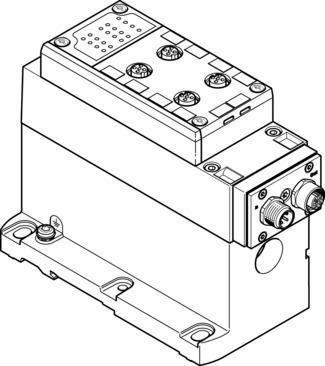

Name: Festo 549042 Electrical interface VABE-S6-1LF-C-A4-E
Brand: Festo

Electrical interface VABE-S6-1LF-C-A4-E

The Festo part number 549042 is an industrial component featuring fieldbus electrical actuation, an electrical connection via CPX, and a maximum of 4 solenoid coils, 4 outputs, and 4 inputs with 1 slave per device. It operates at a nominal voltage of 24 V DC with permissible voltage fluctuations of +/- 10% and incorporates M12x1 4-pin socket and plug interfaces with optocoupler galvanic isolation. Built for any mounting position with a product weight of 850 g, the device offers an IP65 degree of protection, a corrosion resistance class of CRC 0, and an ambient operating temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 549042
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 549042.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Fieldbus interface: Socket, M12x1, 4-pin | Plug, M12x1, 4-pin
Max. no. of solenoid coils: 4
Number of slaves per device: 1
Max. no. of outputs: 4
Max. number of inputs: 4
Nominal operating voltage DC: 24 V
Permissible voltage uctuations: +/- 10%
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Relative air humidity: 0 - 90%
Degree of protection: IP65
Ambient temperature: -5 °C...50 °C
Product weight: 850 g
Electrical actuation: Fieldbus
Electrical connection: Via CPX
Addressing range: 1 ... 31 (0) | Setting using AS-Interface addressing device
Galvanic isolation eldbus interface: Optocoupler
Note on materials: RoHS compliant
Seals material: NBR | PUR
Housing material: Die-cast aluminum | PA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 549042. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
