549045

Name: Festo 549045 AS-i module VAEM-S6-S-FAS-8-8E
Brand: Festo

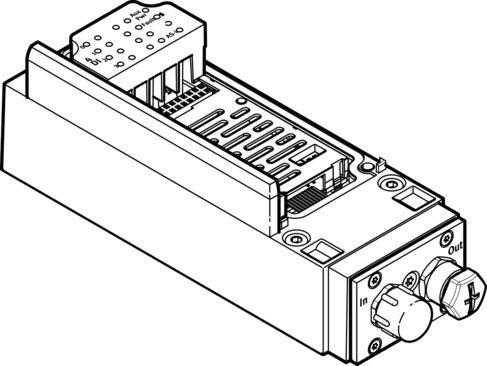

AS-i module VAEM-S6-S-FAS-8-8E

The Festo part number 549045 is an industrial component featuring an AS-Interface DC operating voltage range of 26.5 V to 31.6 V, a nominal operating voltage DC of 24 V, and an AS-interface residual ripple of <= 20 mVss. It supports up to 8 solenoid coils, 8 inputs, and 8 outputs, with a maximum valve position configuration of 4 for double-solenoid valves or 8 for single-solenoid valves. This unit provides reverse polarity protection for all electrical operating voltage connections and includes device-specific diagnostics for undervoltage, peripheral errors, and short circuit or overload of inputs. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 549045
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 549045.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Fieldbus interface: Socket, M12x1, 4-pin | Plug, M12x1, 4-pin
Device-specic diagnostics: Short circuit/overload of inputs | Undervoltage | Via peripheral error:
Mounting position: Any
Max. no. of valve positions: 4 for double-solenoid valves | 8 for single-solenoid valves
Max. no. of solenoid coils: 8
Reverse polarity protection: for all electrical operating voltage connections
Control elements: DIL switch
Number of slaves per device: 2
AS-Interface DC operating voltage range: 26.5 V...31.6 V
Information concerning load voltage: Via load voltage connection (24 V DC)
Load voltage range DC: 21.6 V...26.4 V
Max. no. of outputs: 8
Max. number of inputs: 8
Nominal operating voltage DC AS-Interface: 26.5 V
Nominal voltage DC: 24 V
Nominal operating voltage DC: 24 V
AS interface residual ripple: <= 20 mVss
Load voltage residual ripple: 4 Vss
Switching level: Signal 0: <= 5 V | Signal 1: >= 11 V
Permissible voltage uctuations: +/- 10%
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Relative air humidity: 0 - 90%
Degree of protection: IP65 | In mounted state

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 549045. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
