Name: Festo 549047 Multi-pin node VABE-S6-LT-C-S10-R5
Brand: Festo

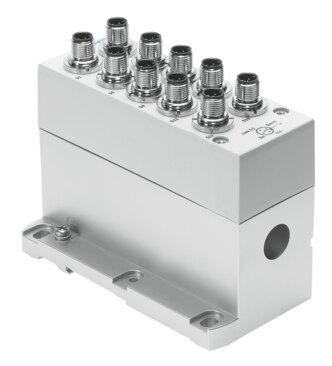

Multi-pin node VABE-S6-LT-C-S10-R5

The Festo 549047 is an industrial component featuring a die-cast aluminum housing and a PA cover, with a product weight of 790 g and a corrosion resistance class of CRC 0 for environments with no corrosion stress. It supports any mounting position, an ambient temperature range of -5 °C to 50 °C, IP65 and NEMA 4 protection, and LABS conformity to VDMA24364-B1/B2-L. Electrical actuation is handled via multi-pin connections, accommodating up to 10 valve positions for double-solenoid valves or 20 for single-solenoid valves, utilizing 10 electrical connections consisting of 5-pin M12 plugs operating at a nominal DC voltage of 24 V with +/- 10% permissible voltage fluctuations and a max residual current of 10 A. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 549047
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 549047.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Max. no. of valve positions: 10 for double-solenoid valves | 20 for single-solenoid valves
Max. residual current: 10 A
Nominal operating voltage DC: 24 V
Permissible voltage uctuations: +/- 10%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 790 g
Number of electrical connections: 10
Electrical actuation: Multi-pin
Electrical connection: 5-pin | M12 | Plug
Cover material: PA
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 549047. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
