549049

Name: Festo 549049 Cover VAEM-S6-C-S10-R5
Brand: Festo

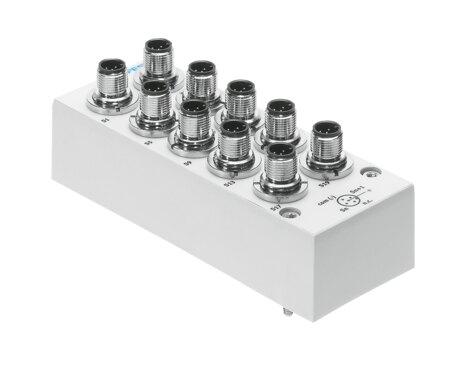

Cover VAEM-S6-C-S10-R5

The Festo 549049 industrial component features a PA housing supporting a maximum of 10 valve positions for double-solenoid valves or 20 for single-solenoid valves. Operating on a nominal 24 V DC with permissible voltage fluctuations of +/- 10%, this unit provides a maximum residual current of 10 A across 10 electrical connections comprising 5-pin M12 plugs. It achieves an IP65 and NEMA 4 degree of protection within an ambient temperature range of -5 °C to 50 °C, alongside a corrosion resistance class of CRC 0 and VDMA24364-B1/B2-L LABS conformity at a product weight of 230 g. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 549049
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 549049.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Max. no. of valve positions: 10 for double-solenoid valves | 20 for single-solenoid valves
Max. residual current: 10 A
Nominal operating voltage DC: 24 V
Permissible voltage uctuations: +/- 10%
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 230 g
Number of electrical connections: 10
Electrical connection: 5-pin | M12 | Plug
Housing material: PA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 549049. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
