Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

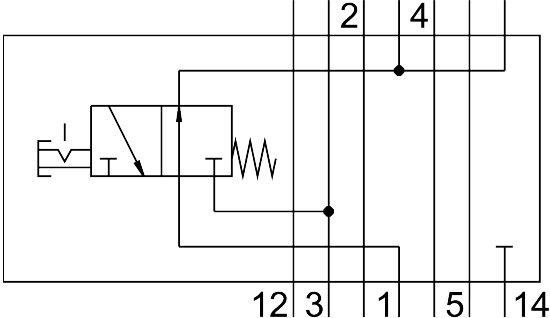

Reference imageConfirm configuration by manufacturer part number.
Festo
549103
Vertical pressure shut-off plate VABF-S1-1-L1D1-C
The Festo 549103 is a 42 mm wide industrial pneumatic vertical stacking shut-off component for 1, manufactured with a die-cast aluminum housing and weighing 600 g. Built in accordance with ISO 5599-1, this part delivers a normal nominal flow rate of 1200 l/min across an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It offers IP65 and NEMA 4 degrees of protection, a corrosion resistance class of CRC 0, VDMA24364-B1/B2-L LABS conformity, RoHS compliance, an ambient temperature range of -5 °C to 50 °C, and mounts in any position on a manifold or individual sub-base with oil lubrication permitted. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549103
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549103.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Based on norm
- ISO 5599-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Shut-off for 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 600 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 549103. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
