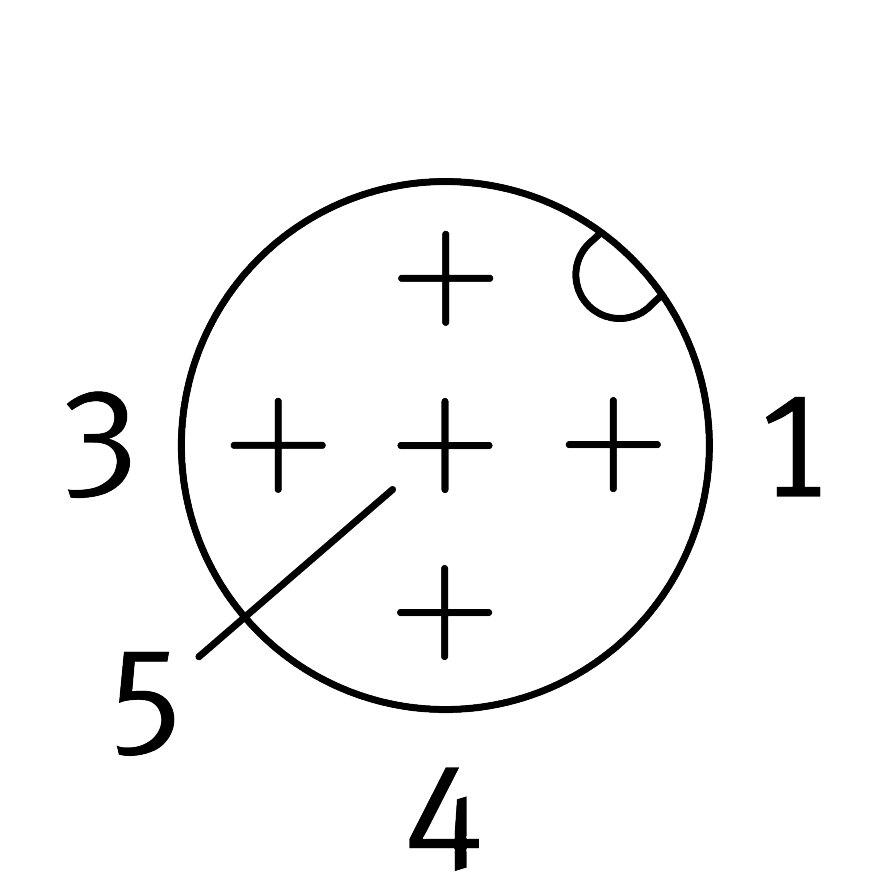

Reference imageConfirm configuration by manufacturer part number.
Festo
549293
Connecting cable NEBC-P1W4-K-0.3-N-M12G5
This Festo industrial component, part number 549293, weighs 188 g and is manufactured in accordance with the EN 61076-2-101 norm without a label holder. The field device side features a square, angled socket with 4 occupied pins and an M3 central screw mounting, while the control side consists of a straight, round 5-pin plug with an M12x1 A-coded connection and a screw-type lock utilizing 4 occupied wires. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549293
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549293.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101
- Cable designation
- Without label holder
- Product weight
- 188 g
- Electrical connection
- 5-pin | M12x1 | Straight plug | Square design/angled
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- Connection pattern P1
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Central screw M3
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...30 V
- Operating voltage range AC
- 0 V...30 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Protective earth connection
- Available
- Shield
- Yes
- Cable length
- 0.3 m
