Name: Festo 549294 Connecting cable NEBC-A1W3-K-0.3-N-M12G5
Brand: Festo

Connecting cable NEBC-A1W3-K-0.3-N-M12G5

This Festo industrial component, part number 549294, weighs 188 g and operates within a DC voltage range of 0 V to 60 V based on EN 61076-2-101. The field device side features a 3-pin, 3-wire socket with an angled square design conforming to EN 175301-803 form A, mounted via a central M3 screw and lacking a label holder. The control side features a straight, 5-pin, 4-wire round plug utilizing M12x1 A-coding per EN 61076-2-101. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 549294
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 549294.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101
Cable designation: Without label holder
Product weight: 188 g
Electrical connection: 5-pin | M12x1 | Straight plug | Square design/angled
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

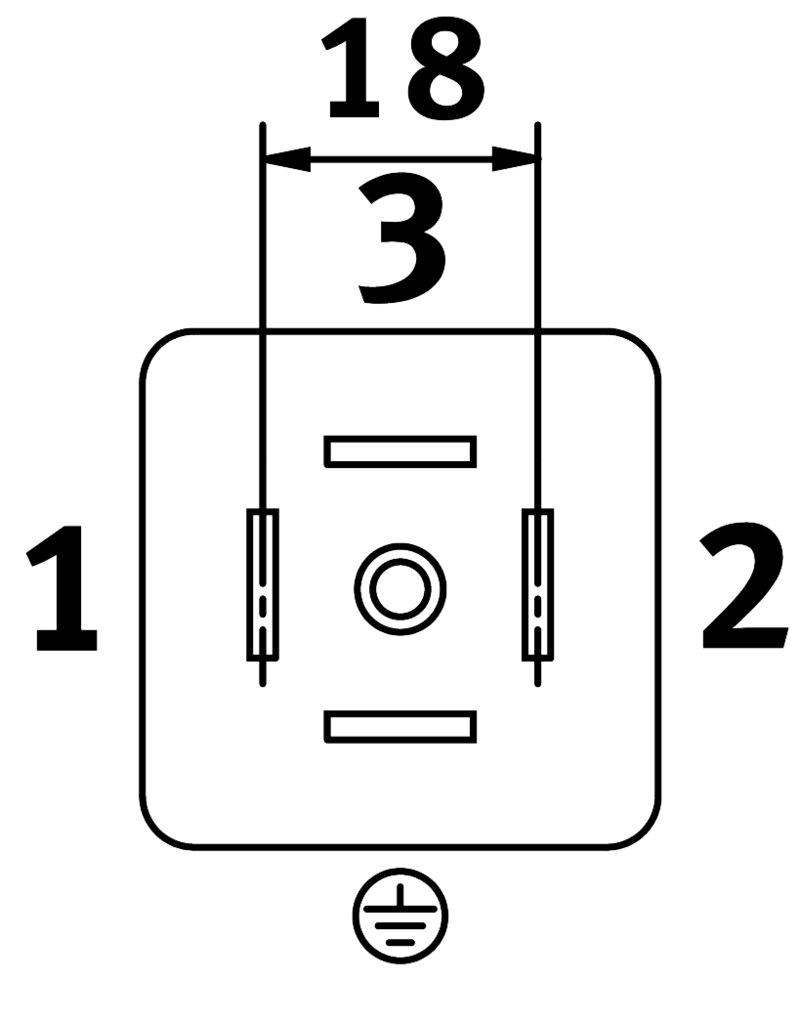

Electrical connection 1, connection technology: Connection diagram form A as per EN 175301-803
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: Central screw M3
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 5
Electrical connection 2, occupied pins/wires: 4
DC operating voltage range: 0 V...60 V
Operating voltage range AC: 0 V...60 V
Current rating at 40° C: 4 A
Surge resistance: 1.5 kV
Protective earth connection: Available
Shield: Yes
Cable length: 0.3 m
