Festo
549396

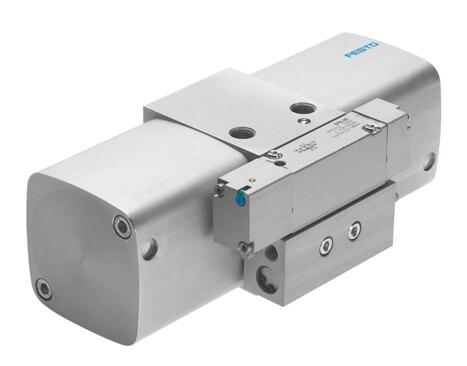

Pressure booster DPA-40-D
The Festo part number 549396 is a double-piston pressure booster featuring a 40 mm piston diameter and a product weight of 1500 g, designed for any mounting position. It operates with a 0.25 MPa to 0.8 MPa inlet pressure 1 and delivers an outlet pressure 2 ranging from 0.5 MPa to 1.6 MPa, utilizing compressed air as per ISO 8573-1:2010 [7:3:4] without oil lubrication capability. This industrial component includes a G1/8 pressure gauge setup, a moderate corrosion resistance class (CRC) of 2, LABS conformity under VDMA24364-B1/B2-L, and a storage and ambient temperature range of 5 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549396
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549396.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 40 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/8
- Output pressure 2
- 0.5 MPa...1.6 MPa | 72.5 psi...232 psi
- Outlet pressure 2
- 5 bar...16 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Pressure regulation range MPa
- 0.4 MPa...1.6 MPa
- Pressure regulation range
- 4 bar...16 bar
- Pressure regulation range psi
- 58 psi...232 psi
- Inlet pressure 1
- 2.5 bar...8 bar
- Inlet pressure 1 MPa
- 0.25 MPa...0.8 MPa
- Inlet pressure 1 psi
- 36.25 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 1500 g
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- M7
- Note on materials
- RoHS compliant
