Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

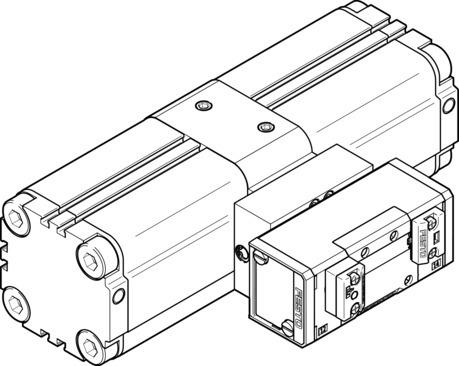

Reference imageConfirm configuration by manufacturer part number.
Festo
549397
Pressure booster DPA-63-D
The Festo 549397 is a 6000 g structural double-piston pressure booster featuring a 63 mm piston diameter and any mounting position. This component accepts an inlet pressure 1 of 2 bar to 8 bar (0.2 MPa to 0.8 MPa, 29 psi to 116 psi) to deliver an output pressure 2 ranging from 4 bar to 16 bar (0.4 MPa to 1.6 MPa, 58 psi to 232 psi). Operating with compressed air as per ISO 8573-1:2010 [7:3:4] where oil lubrication is not possible, the unit includes a G1/8 pressure gauge setup, CRC 2 moderate corrosion stress resistance, and VDMA24364-B1/B2-L LABS conformity for an ambient and storage temperature range of 5 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549397
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549397.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 63 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/8
- Output pressure 2
- 0.4 MPa...1.6 MPa | 58 psi...232 psi
- Outlet pressure 2
- 4 bar...16 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Pressure regulation range MPa
- 0.4 MPa...1.6 MPa
- Pressure regulation range
- 4 bar...16 bar
- Pressure regulation range psi
- 58 psi...232 psi
- Inlet pressure 1
- 2 bar...8 bar
- Inlet pressure 1 MPa
- 0.2 MPa...0.8 MPa
- Inlet pressure 1 psi
- 29 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 6000 g
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Pneumatic connection 3
- G3/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 549397. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
