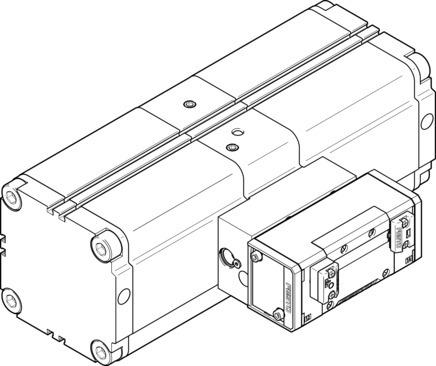

Reference imageConfirm configuration by manufacturer part number.
Festo
549398
Pressure booster DPA-100-D
The Festo part number 549398 is an industrial component featuring a double-piston structural design with a 100 mm piston diameter and a product weight of 13000 g, configurable in any mounting position. It operates with compressed air as per ISO 8573-1:2010 [7:3:4] within an operating pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar or 36.25 psi to 116 psi), while prohibiting oil lubrication. This unit provides an inlet pressure 1 of 0.2 MPa to 0.8 MPa (2 bar to 8 bar or 29 psi to 116 psi) and delivers an output pressure 2 ranging from 0.4 MPa to 1.6 MPa (4 bar to 16 bar or 58 psi to 232 psi), accompanied by a G1/8 pressure gauge setup and a pressure regulation range of 0.5 MPa to 1.6 MPa (5 bar to 16 bar or 72.5 psi to 232 psi). Built with a moderate corrosion resistance class (CRC) of 2 and VDMA24364-B1/B2-L LABS conformity, the component functions within an ambient and storage temperature range of 5 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549398
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549398.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 100 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/8
- Output pressure 2
- 0.4 MPa...1.6 MPa | 58 psi...232 psi
- Outlet pressure 2
- 4 bar...16 bar
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Pressure regulation range MPa
- 0.5 MPa...1.6 MPa
- Pressure regulation range
- 5 bar...16 bar
- Pressure regulation range psi
- 72.5 psi...232 psi
- Inlet pressure 1
- 2 bar...8 bar
- Inlet pressure 1 MPa
- 0.2 MPa...0.8 MPa
- Inlet pressure 1 psi
- 29 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 13000 g
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G1/2
- Note on materials
- RoHS compliant
