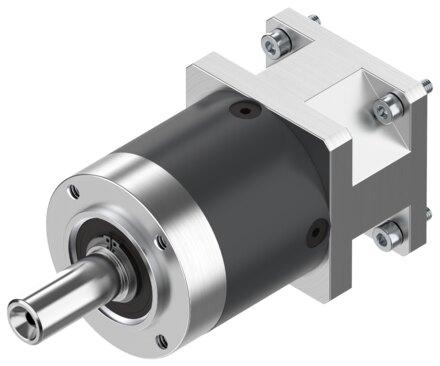

Reference imageConfirm configuration by manufacturer part number.
Festo
549429
Gear unit EMGA-40-P-G5-SST-42
The Festo 549429 is an industrial planetary gear set featuring a 40 mm gearbox flange size, a 42 mm motor flange size, and a 5:1 gear ratio designed for a max actuator speed of 18000 rpm. This component delivers a continuous output torque of 14 Nm, a max output torque of 22 Nm, and operates within a temperature range of -25 °C to 90 °C while maintaining an IP54 degree of protection. Weighing 350 g, the unit incorporates a 40G output shaft interface, a 42A actuator interface, and exhibits a torsional backlash of 0.25 deg with 98% max efficiency. Submit the exact part number, quantity, and application requirements to request a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549429
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549429.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 40 mm
- Motor ange size
- 42 mm
- Torsional backlash
- 0.25 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 5:1
- Max. actuator speed
- 18000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 14 Nm
- Mass moment of inertia, gearbox
- 0.019 kgcm²
- Max. output torque
- 22 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 1 Nm/arcmin
- Product weight
- 350 g
- Gearbox interface, output shaft
- 40G
- Gearbox interface, actuator
- 42A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 549429. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
