Festo
549432

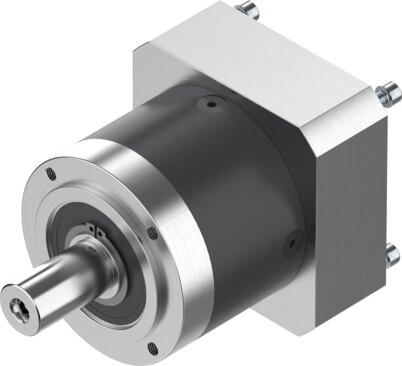

Gear unit EMGA-80-P-G3-SST-87
This Festo industrial component features a planetary gear set with a 3:1 gear ratio, an 80 mm gearbox flange size, and an 87 mm motor flange size, delivering a continuous output torque of 85 Nm and a maximum output torque of 136 Nm at speeds up to 7000 rpm. Weighing 2100 g with a mass moment of inertia of 0.77 kgcm², the unit provides an IP54 degree of protection, a torsional backlash of 0.12 deg, a torsional rigidity of 6 Nm/arcmin, and operates within a temperature range of -25 °C to 90 °C while maintaining up to 98% efficiency. The RoHS compliant assembly includes an 80G output shaft gearbox interface, an 87A actuator gearbox interface, VDMA24364-B2-L LABS conformity, and accommodates a permissible axial shaft load of 1000 N alongside a permissible radial shaft load of 750 N. Submit part number 549432, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549432
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549432.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 87 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 3:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 85 Nm
- Mass moment of inertia, gearbox
- 0.77 kgcm²
- Max. output torque
- 136 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 6 Nm/arcmin
- Product weight
- 2100 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 87A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 549432. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
