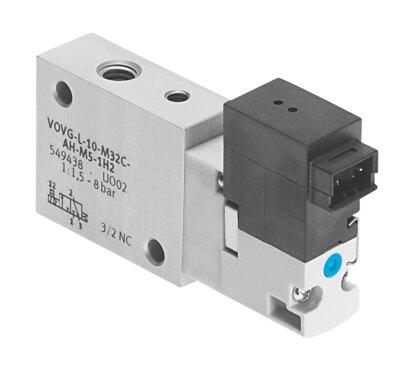

Reference imageConfirm configuration by manufacturer part number.
Festo
549438
Air solenoid valve VOVG
The Festo part number 549438 is an electrically actuated industrial component featuring a piston gate valve structural design with a soft sealing principle and positive overlap lap. This piloted device operates within a pressure range of -0.09 MPa to 0.8 MPa and supports a normal nominal flow rate from 180 l/min to 200 l/min normalized to DIN 1343. Configurations include 3/2-way closed monostable, 3/2-way monostable open, and 5/2-way monostable valve functions with options for sub-base, M5, QS-3, QS-4, or QS-6 pneumatic working ports. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549438
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549438.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 10 mm | 12 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 180 l/min...200 l/min
- Pneumatic working port
- Sub-base | M5 | QS-3 | QS-4 | QS-6
- Operating voltage
- 12V DC | 24V DC | 5V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Nominal width
- 2.1 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Pilot pressure psi
- 43.5 psi...116 psi
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 549438. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
